Lifting arm

GIANT hydraulic quick change system

ROPS / FOPS safetyroof incl. safety doors left and right

Luxury air suspended seat with safety belt, armrest and extended backrest

Double acting valve at the front (mechanical)

Floating position on lifting cylinder(s)

Hydraulic servicebrake on 4 wheels

Working light (halogen) at the front

Battery, 77 Ah

Main switch

Anti-theft protection with access code (not certified)

Towing hook at the back

1 Counterweight integrated into the bumper

Cyclone filter

Oil cooler

The hydrostatic 4-wheel drive with automotive steering and 100% switchable differential lock on both 14-ton axles prevents the machine from losing grip and provides sufficient pulling force for smooth movement. Due to the often narrow and limited space on construction sites, there is a demand for an agile wheel loader with a narrow wheelbase that can lift and transport heavy loads. The G3500 X-TRA stands out with a high tipping load (3,250 kg) compared to its own weight (3,700 kg).

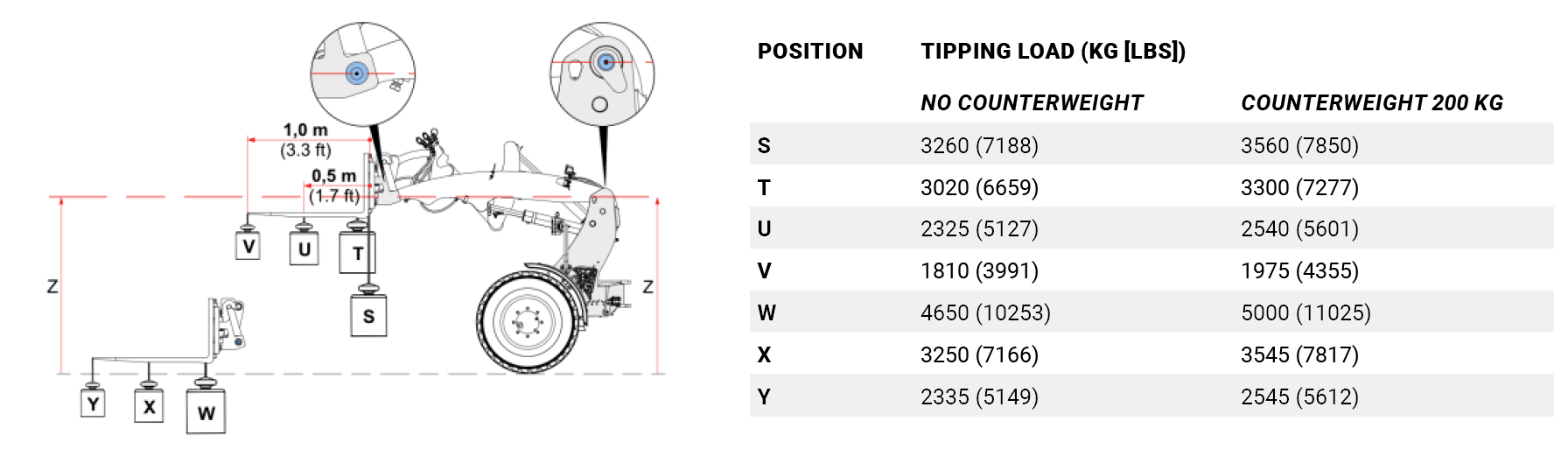

Tipping loads of the machine

The table shows the tipping loads at different positions of the machine. The tipping load is the maximum weight the machine can lift while remaining stable and not tipping. The actual tipping load depends on the configuration of the machine, such as various options, attachments and working position.

Specifications

Service weight ¹ 3700 kg

Lifting capacity 3225 kg

Tipping Load ² 3250 kg

Lifting height ³ 2670 mm

Length without bucket 3750 mm

Machine height ⁴ 2330

Width on standard tires 1340 mm

Standard tires 11.5/80-15.3 AS

Travel Speed 0-10 km/h 0-30 km/h (with automatic gear)

Engine Kubota V2403-CR-TE5B DOC/DPF (STAGE V)

Cylinders 4
